North American All Weather Super Fury Proposal 1954 (150 DPI)

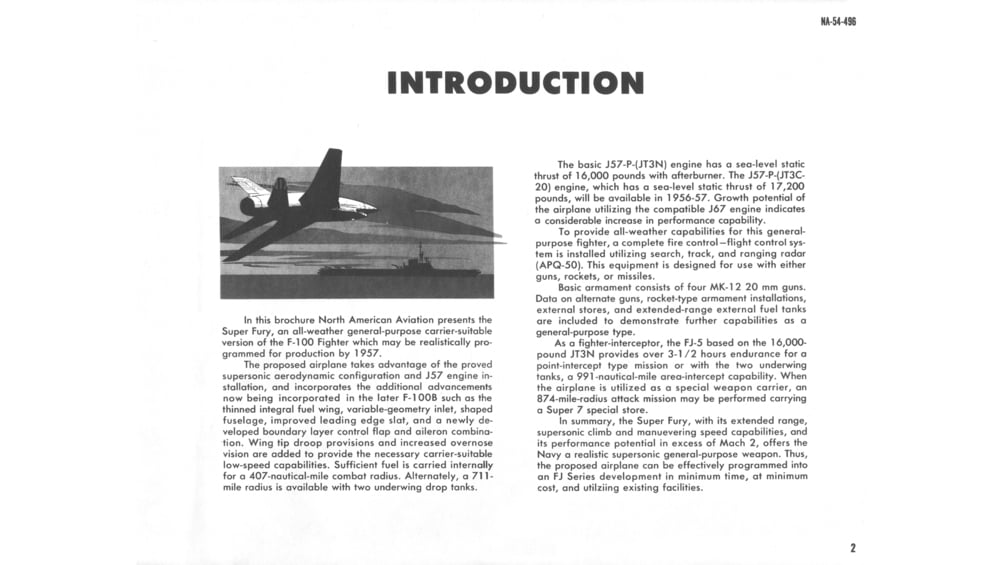

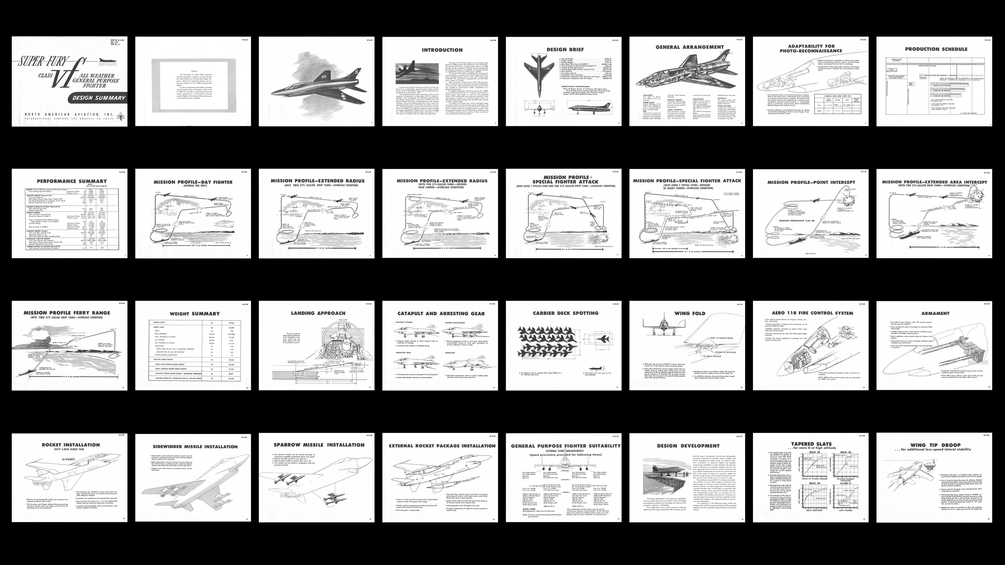

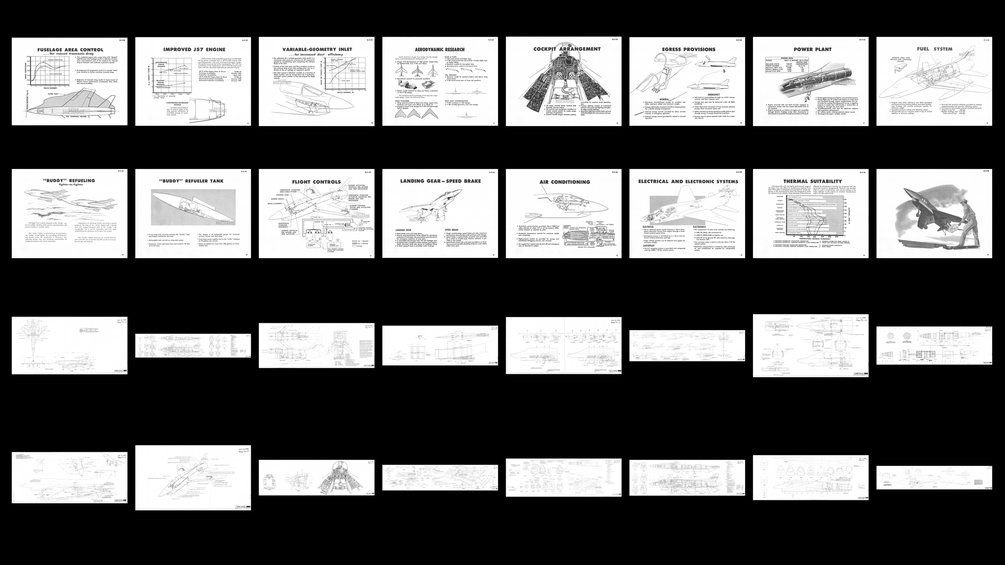

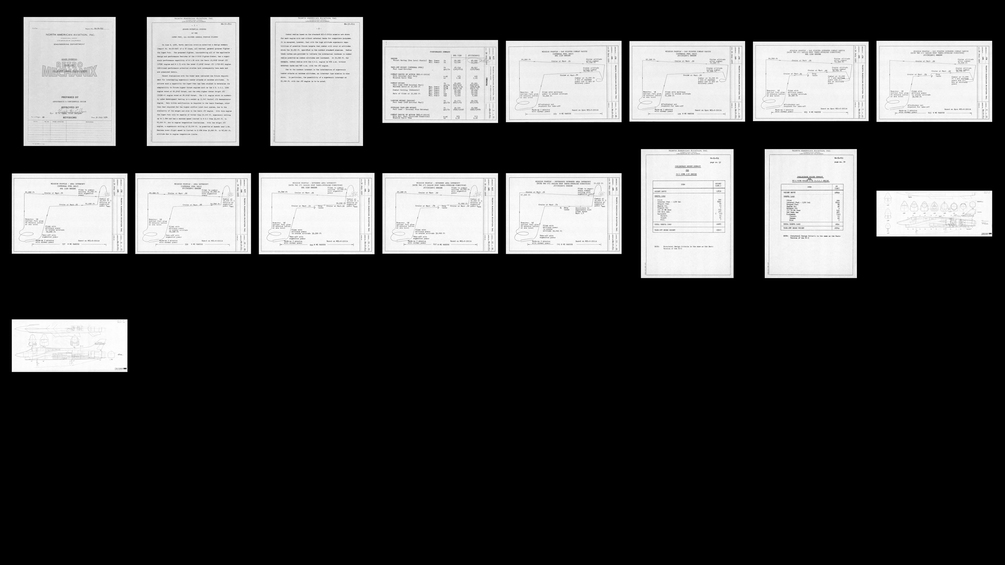

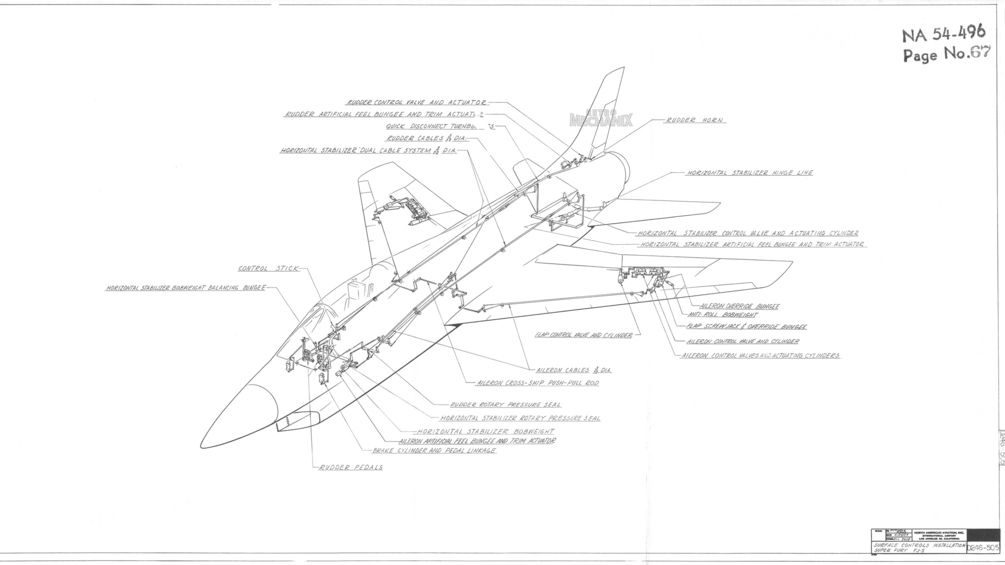

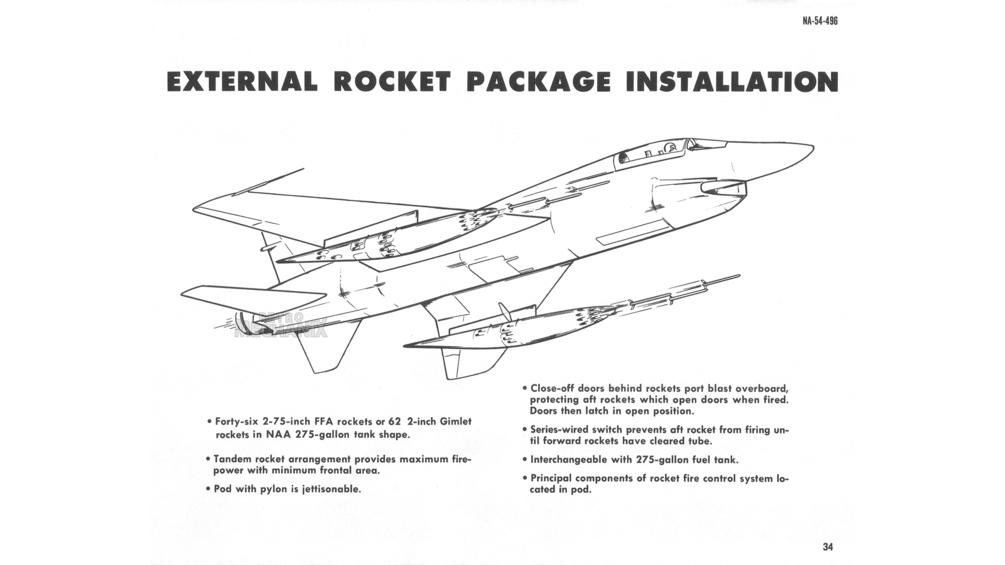

A pair of PDFs covering the North American All Weather Super Fury proposal of 1954, essentially a navalized F-100 featuring a prominent nose radome housing an AERO 11B fire control system with a variable-geometry chin inlet below it. The first document is a 64 page Design Summary from June 4, 1954 packed with artwork and detailed blueprints documenting the proposal in great detail. The second PDF is a 17 page report covering the growth potential of the design; it features 2 blueprints of the aircraft with more powerful engine installations. In total, there are 81 pages of material with 59 pages of rare artwork and blueprints scanned at 150 DPI. (Please note that the images are lightly watermarked with the Retromechanix logo).
